X1 Foldable

Overview

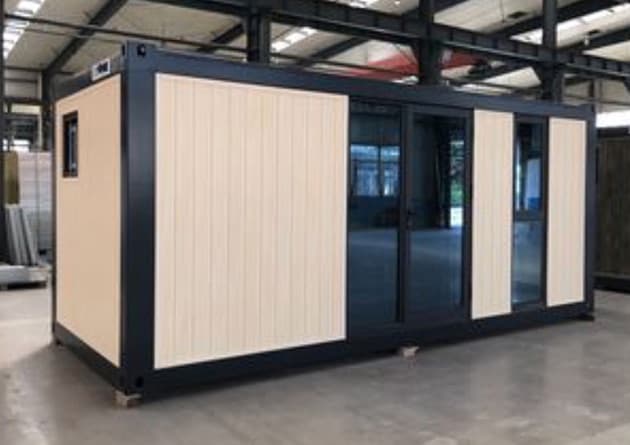

The X1 is the module everything else is built from: a foldable 20-foot unit with a black steel frame, wood-look wall panels, a glass entry door and a picture window. It arrives folded flat on a standard truck, unfolds on site, and folds down again when you need it somewhere else. Far lighter than a 15,000-pound steel container and faster to produce than a conventional container home. Fitted out as a bunkhouse with a mini-split, it is the unit running as nightly rental cabins at Jellystone Park™ Zion. Order it in wood-look or white for living, or in color panels with a steel door and barred window for a guard shack, starter dwelling, or community and disaster housing.

Specifications

Floor area

160 sq ft

Bedrooms

Studio / open plan

Bathrooms

Optional

Dimensions

20 × 8 × 8.5 ft

Shipping weight

4,000 lbs

Transport

Standard load

Structure

Folding steel frame; wall panels fold flat for transport

Exterior

Wood-look or white panels with black frame, or color panels with white frame

Glazing

Glass entry door and picture window, or steel door with barred window

Setup

Unfolds on site; folds down again for reuse

Dimensions and weights are nominal.

Accessories

Add these in the configurator.

•

  Porch · $1,795

  A covered entry porch on a black steel frame: wood-look ceiling with recessed lights, composite decking and a black railing, attached at the entry door.

•

  AC mini-split · $1,495

  Senville LETO 9,000 BTU ductless mini-split heat pump: heating and cooling, quiet inverter operation, 110/120V, remote and Alexa control. Pre-charged system with the installation kit included. Professional installation required.

•

  Chassis · $3,995

  A galvanized steel trailer chassis with axle, wheels, tongue jack and hitch, so the unit tows behind a pickup and sets up on its own leveling legs. Ships with the unit mounted.

•

  Upstairs deck & stairs · $8,900

  A rooftop deck with railings and an exterior stair, turning the roof into outdoor living space. Placeholder price.
